Large Format Metal Marking,
Engraving & Routing

Large Marking Surface? No Problem.

Mark  Large Surfaces - Oversize Marking Areas - Rotary Spindle Engraving

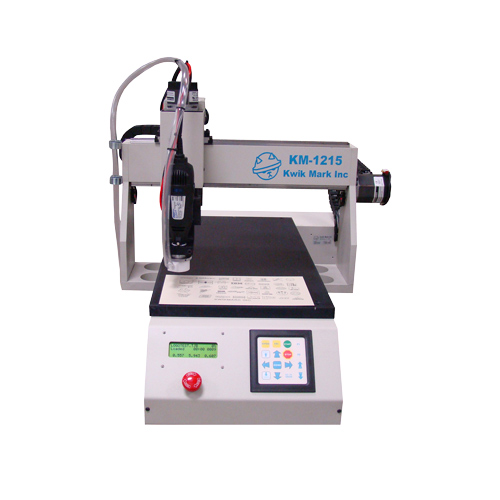

The bench top gantry is a flat bed, CNC type structure designed for fast and efficient marking/engraving of your parts. The large top plate includes pre tapped holes for mounting your own fixturing or choose one of our vacuum plates, tapped bread boards, etc.

Larger gantry style systems are available for applications with larger marking areas. Kwikmark has built systems up to 50" x 100" travel for full-size sheet/panel marking. We stock several common sizes - from 12" x 7" to 24" x 24".

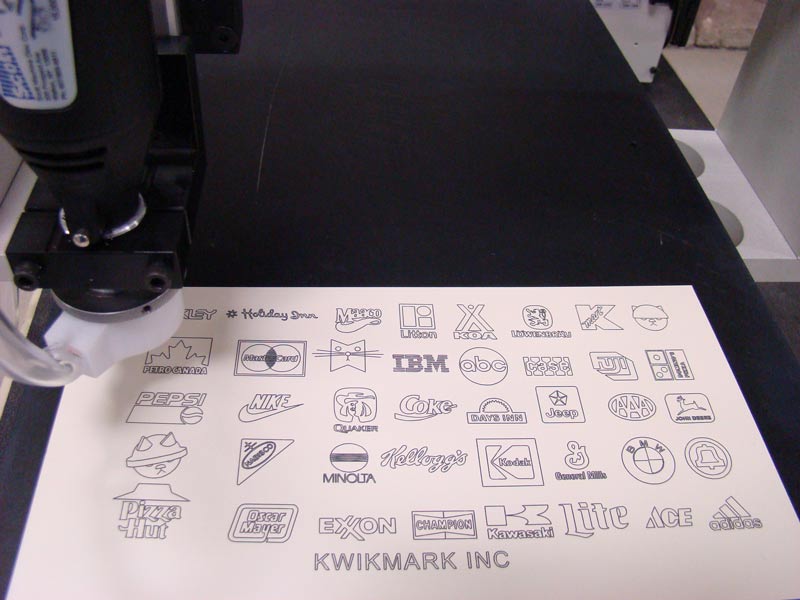

What's more, these systems are also available with different marking technologies, such as Rotary Spindle (engraving and routing applications), as well as Laser. In fact, we can even set up a system with multiple heads to suit virtually any application.



Important Features

Dozens of pre set functions
Time-saving cloning feature
Control serialization and sequencing automatically
Includes RS-232 and network (LAN) connectivity

Fast Large Format Marking and Engraving

Machine Tool Performance

Each axis (XYZ) features pre-loaded leadscrews and ball slides for machine tool performance and rigidity. The on board processor requires no external PC for operation. The Compact Flash Card stores all marking files, setup parameters etc.

Flash Card

Industrial Marking Product Brochure in Acrobat PDF download

km_APPLICATION_KM 2424.pdf

Download Large Format Marking product information in Acrobat PDF format
