Micro Mark Hand-Held
Vibro Dot Peen Marker

Portable Dot Pin Vibro Marking Machine

Micro Mark -  Portable Hand Held Dot Peen Marker

The Micro Mark is the most versatile compact vibro dot peen marker available today. Ideal for hand held applications as well as on-machine integration. The compact (3” x 5” x 6”) head size (5+ lbs) offers a generous 1.0” x 2.5” marking field to suit most industrial marking applications. Plus, lots of additional I/O (with logic) streamlines “handshaking” with other machinery, when required, and allows importing data from external files.

Includes all software functions as the entire Kwikmark product line.

Advanced Ergonomic Design

The Micro Mark boasts an advanced ergonomic design, including a handle with the “just right contours,” machined from solid light weight aluminum. The handle is also part of an assembly that incorporates a quick release mount as well as a central micro-adjustment mechanism used to fine tune the distance from the tip to the marking surface. But we didn't stop there, we also designed a unique mechanically actuated trigger that requires no wires or connections to the marking head.

Automatic Line Centering

This important feature automatically centers the marking image to your part, whether it is single or multiple lines, graphics or both with no measuring or operator input required. Just type the information you wish to mark and the Micro Mark will line it up automatically! This feature may be enabled in the X, Y or both axes.

Your operators will appreciate this feature especially when marking round parts such as shafts, pipes, etc.

The Operator's Choice

Just squeeze the trigger or touch the button. Your operators will appreciate the ergonomics and ease of use with the marker’s stability.

The Micro Mark’s light weight centered and balanced handle suits both left & right handed operators.

Machine Tool Quality

Designed and manufactured with...

Pre-loaded leadscrews & ball slides
Brushless hi-torque motors
Non contact limit sensors
Precision machined aircraft quality aluminum
Industrial plated connectors
Digital solid state electronics
Latest embedded control technology

Lightweight Micro Mark Dot Peen Marker You Can Hold

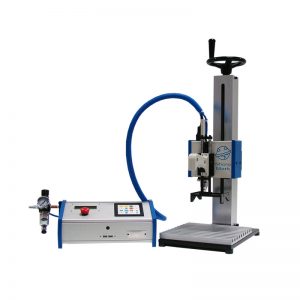

Several options are available from stock such as hardened V block feet, reversible auxiliary handles for LH or RH operators, and miscellaneous mounting / clamp designs for standard and custom applications.

Industrial Marking Product Brochure in Acrobat PDF download

Micro-Mark.pdf

Download Micro Mark product information in Acrobat PDF format

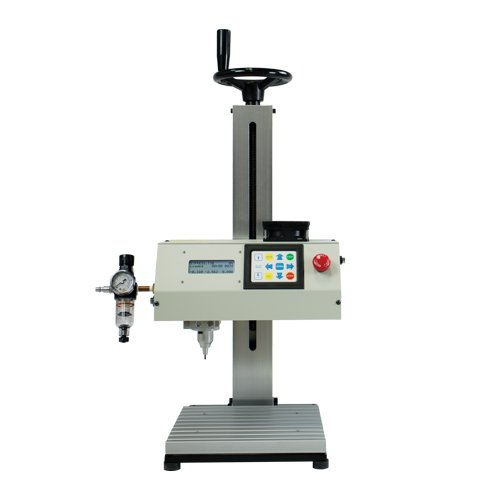

Also see Kwikmark's portable Mini Marker Dot Peen Marker, as well as our benchtop Dot Peen Marking Machine.
